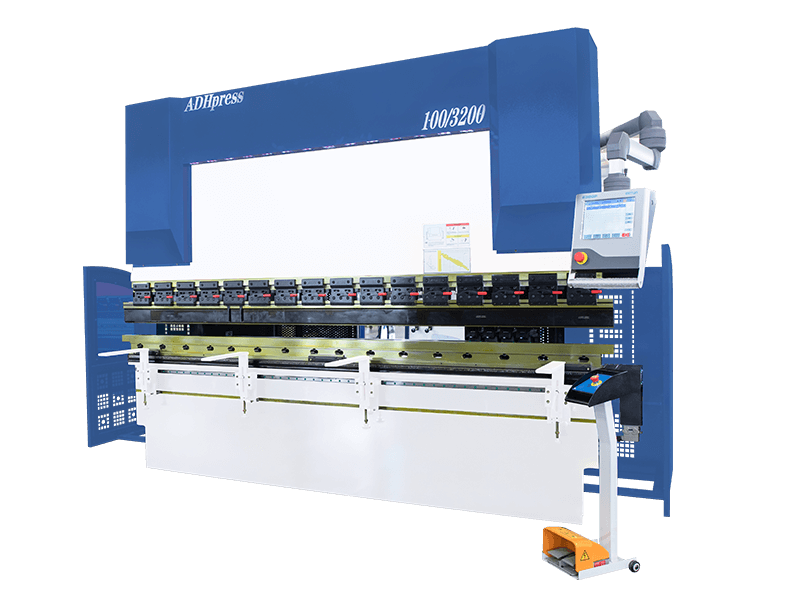

NC Press Brake

Torsion – Sync NC Press Brake

NC press brake is an economical hydraulic press brake machine with competitive price, convenient installation, simple operation and convenient after-sales maintenance. These advantages make NC press brake popular with most customers.

If you want to know more detailed parameters, please contact us.

Unit	Kn	mm	mm/s	mm/s	mm/s	mm	mm	mm	mm	Kw	Ton	L¡ÁW¡ÁH mm
30t/1600	300	1600	120	17	160	1300	200	80	320	5.5	2.3	165012001700
30t/2000	300	2000	140	17	160	1300	200	80	320	5.5	2.5	200012001700
40t/2500	400	2500	110	15	90	2030	250	100	340	5.5	3.5	250012001900
63t/2500	630	2500	100	10	70	2050	250	120	340	5.5	4.5	250013502100
63t/3200	630	3200	120	10	70	2510	250	120	340	5.5	5	320013502100
80t/2500	800	2500	110	10	80	2050	250	120	350	5.5	6	250014002150
80t/3200	800	3200	130	10	80	2510	250	120	350	5.5	6.2	320014002150
100t/2500	1000	2500	90	8	70	2050	320	120	380	7.5	6.5	250015002200
100t/3200	1000	3200	100	8	70	2510	320	120	380	7.5	7	320015002300
100t/4000	1000	4000	120	8	70	3100	320	120	380	7.5	8.5	400015002400
WX67Y-100t/4000	1000	4000	130	8	70	3100	420	160	435	7.5	9	400016502500
125t/3200	1250	3200	95	7	65	2510	320	120	380	7.5	7.5	320016002350
125t/4000	1250	4000	110	7	65	3100	400	120	380	7.5	9.5	400016002450
WX67Y-125t/4000	1250	4000	120	7	65	3100	420	160	435	7.5	10	400017002500
160t/2500	1600	2500	100	10	100	2050	320	200	450	11	9	250016502700
160t/3200	1600	3200	110	10	100	2510	320	200	450	11	11	320016502800
160t/4000	1600	4000	120	10	100	3040	320	200	450	11	12	400016502800
160t/5000	1600	5000	130	10	100	3800	320	200	450	11	14.5	500017503100
160t/6000	1600	6000	140	10	100	4600	320	200	450	11	19.5	600017503300
200T/3200	2000	3200	80	9	105	2600	320	250	540	15	13.5	320019003100
200T/3200C	2000	3200	110	10	100	2510	320	200	450	11	11.5	320016502800
200T/4000	2000	4000	90	9	105	3300	320	250	540	15	15	400019003100
200T/4000C	2000	4000	120	10	100	3040	320	200	450	11	12.5	400016502800
200T/5000	2000	5000	120	7	80	3800	320	250	540	15	19	500019503100
200T/6000	2000	6000	120	7	80	4600	320	250	540	15	21	600019503100
250T/3200	2500	3200	90	9	100	2600	400	250	580	18.5	17	330021003150
250T/4000	2500	4000	100	9	100	3300	400	250	580	18.5	20	400021003150
250T/5000	2500	5000	110	8	100	3800	400	250	580	18.5	23	500021003200
250T/6000	2500	6000	120	8	100	4600	400	250	580	18.5	25.5	600021003200
300T/3200	3000	3200	90	8	75	2600	400	250	580	18.5	21	320022003200
300T/4000	3000	4000	100	8	75	3300	400	250	580	18.5	23	400022003200
300T/5000	3000	5000	110	8	75	3800	400	250	580	18.5	25	500022003200
300T/6000	3000	6000	130	8	75	4600	400	250	580	18.5	27.5	600022003200
400T/4000	4000	4000	70	7	60	3300	400	250	580	22	26	400024003200
400T/5000	4000	5000	80	7	60	3800	400	250	580	22	32	500024003200
400T/6000	4000	6000	100	7	60	4400	400	250	580	22	35	600024003200
500T/4000	5000	4000	70	6	55	3300	500	320	620	30	33	400026503200
500T/5000	5000	5000	90	6	55	3800	500	320	620	30	37.5	500026503200
500T/6000	5000	6000	120	6	55	4410	500	320	620	30	43.5	600027003200
500T/7000	5000	7000	130	6	55	5400	500	320	620	30	55	700027003200
600T/4000	6000	4000	80	6	65	3300	500	320	620	37	45	400027003200
600T/5000	6000	5000	90	6	65	3800	500	320	620	37	48	500027003250
600T/6000	6000	6000	110	6	65	4600	500	320	620	37	55	600027003300
600T/7000	6000	7000	120	6	65	5400	500	320	620	37	62	700029003500
