General Features

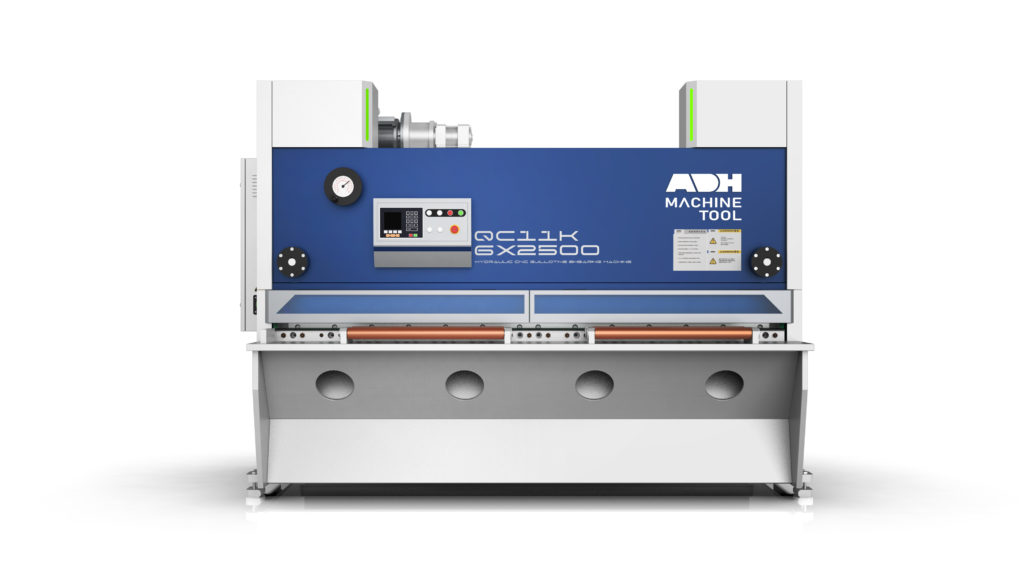

• ADH Guillotine Shearing machine adopt ball screw, linear guide and servo motor to drive the back gauge with high positioning accuracy
• Integrated steel welded structure, eliminate stress by vibration, with good rigidity
• Adopt the advanced hydraulic integrated valve block which is in compact structure and will reduce piping connections, and improves system reliability and maintainability
• Optional Estun E200PS, DELEM DAC310T and DELEM DAC360T, Cybelec CT8 CNC controller
• Serials connection of oil cylinder to prevent the cutting angle changing during the operation of the shearing machine
• Accumulator return smooth and rapid
• Manual/automatic adjustment of blade clearance (depend on the controller), accurate, rapid and convenient
• Adjustable shear angle to reduce sheet distortion
• Motorized back gauge and position display make it convenient and precise
• Rolling material support ball will reduce the scratch and frictions as well

Stander Components

• Hydraulic Valve: Rexroth
• Oil Pump: Sunny
• Oil Cylinder: Sunny
• Main Motor: Siemens
• Ball Screw Rod: Zeen/PMI
• Linear Guide: Zeen/Schneeberger
• Front Support: Normal Support
• Line Alignment Device: Light
• Front Fence: Welded Type
• Pedal Switch: Simple Emergency Stop Type
• Controller: E21S
• Electrics: Schneider

Optional

• Main Motor: WNM
• Ball Screw Rod: HIWIN
• Linear Guide: HIWIN
• Front Support: Angle Adjustable Support
• Line Alignment Device: Laser Marking Device/Line Alignment
• Front Fence: Sheet Metal Type/Light Curtain Protection/Section Upturned
• Rear Protection: Light Curtain Protection
• Hydraulic Oil Cooling Device: Air Cooling Device
• Pedal Switch: Roller Pedal Switch

Model	Cutting Thickness	Width	Strokes	Back Gauge Range	Cutting Angle	Main Power	Weight	Dimensions
Unit	mm	mm	times/min	mm	°	KW	Ton	mm
6*2500	6	2500	16-25	20-800	30`-1°30`	7.5	6	3200*1950*2050
6*3200	6	3200	14-20	20-800	30`-1°30`	7.5	6.8	3900*1950*2075
6*4000	6	4000	12-17	20-800	30`-1°30`	7.5	9.5	4640*2000*2100
6*5000	6	5000	8-14	20-800	30`-1°30`	15	14.5	5780*2100*2380
6*6000	6	6000	7-12	20-800	30`-1°30`	15	19.6	6750*2200*2500
8*2500	8	2500	13-20	20-800	30`-1°30`	11	6.5	3150*1970*2055
8*3200	8	3200	11-18	20-800	30`-1°30`	11	7	3850*2050*2100
8*4000	8	4000	9-16	20-800	30`-1°30`	15	10.8	4650*2100*2400
8*5000	8	5000	8-15	20-800	30`-1°30`	15	16	5700*1950*2600
8*6000	8	6000	7-14	20-800	30`-1°30`	18.5	19.8	6750*2250*2615
13*2500	13	2500	10-20	20-800	30`-2°	22	10	3250*1950*2110
13*3200	13	3200	9-18	20-800	30`-2°	22	10.2	3900*2070*2315
13*4000	13	4000	8-16	20-800	30`-2°	22	12.5	4800*2150*2460
13*5000	13	5000	7-14	20-1000	30`-2°	22	22.5	5800*2270*2800
13*6000	13	6000	6-12	20-1000	30`-2°	30	27	6950*2450*3050
16*2500	16	2500	9-18	20-800	30`-2°30`	22	11	3280*2020*2270
16*3200	16	3200	8-17	20-800	30`-2°30`	22	12	3950*2150*2450
16*4000	16	4000	7-15	20-800	30`-2°30`	22	15.5	4800*2130*2550
16*6000	16	6000	6-11	20-1000	30`-2°30`	37	36	7000*2500*3000
16*8000	16	8000	4-8	20-1000	30`-2°30`	45	63	9050*3180*3500
20*2500	20	2500	7-16	20-800	30`-3°	30	14	3200*2220*2520
20*3200	20	3200	6-15	20-800	30`-3°	30	16.5	3950*2150*2600
20*4000	20	4000	6-14	20-800	30`-3°	37	19	4750*2400*2900
20*6000	20	6000	5-11	20-1000	30`-3°	30*2	43	7000*2850*3350
25*2500	25	2500	5-14	20-800	30`-3°30`	37	15	3270*2000*2650
25*3200	25	3200	5-10	20-800	30`-3°30`	37	19	3970*2200*2670
25*4000	25	4000	5-8	20-800	30`-3°30`	45	27	4900*2800*3190
30*2500	30	2500	5-12	20-1000	30`-3°	45	23	3450*2500*2900
30*3200	30	3200	4-10	20-1000	30`-3°30`	55	28	4150*2700*2850
30*4000	30	4000	3-7	20-1000	30`-3°30`	55	36	5200*2600*3350
40*2500	40	2500	4-8	20-1000	30`-4°	55	38	4000*2950*3150
